Concept render: MOAB, a navy Jeep JL-based race truck with lime DXR Dynamics graphics and the number 1351 on the roof, seen from above on desert sand Concept render
Race Program · #1351

MOAB: hybrid drive,
built for the desert.

A Jeep JL-based hybrid off-road race truck, built to show that extended-range hybrid drive works where it's hardest: in the desert.

2027 SeasonSponsor or Follow
The Story

Why we built MOAB

Desert racing punishes everything: hundreds of miles of rock, silt and whoops, extreme heat, and nowhere to plug in. That's exactly why we race there.

MOAB starts from a Jeep JL and becomes a purpose-built hybrid race truck. It's DXR Dynamics' rolling test bench. Every mile it runs is data that goes straight back into our range-extension technology.

The question MOAB is built to answer is simple: can extended-range hybrid drive go the distance off-road, where battery-only vehicles have to stop?

We're building it in the open, from bare chassis to race day, and sharing what we learn along the way.

How It Works

Extended-range hybrid drive

MOAB is a series hybrid. The engine never drives the wheels. Its only job is to make electricity.

1 · Diesel generatorAn onboard diesel engine turns a generator.
2 · BatteryThe generator keeps the battery charged on the move.
3 · Electric driveElectric motors drive the wheels with instant, controllable torque.
4 · Keep goingRefuel instead of recharge, so it can keep going where EVs stop.

No chargers needed

Fuel is carried on board, so remote desert courses are no problem.

Electric control

Precise throttle at crawling speed in the rocks and smooth power in the sand.

Efficient by design

The engine can run at its sweet spot, no matter how fast the wheels turn.

Build Highlights

Built for the long haul

Currie axles

Heavy-duty axles front and rear, built to take desert and rock abuse.

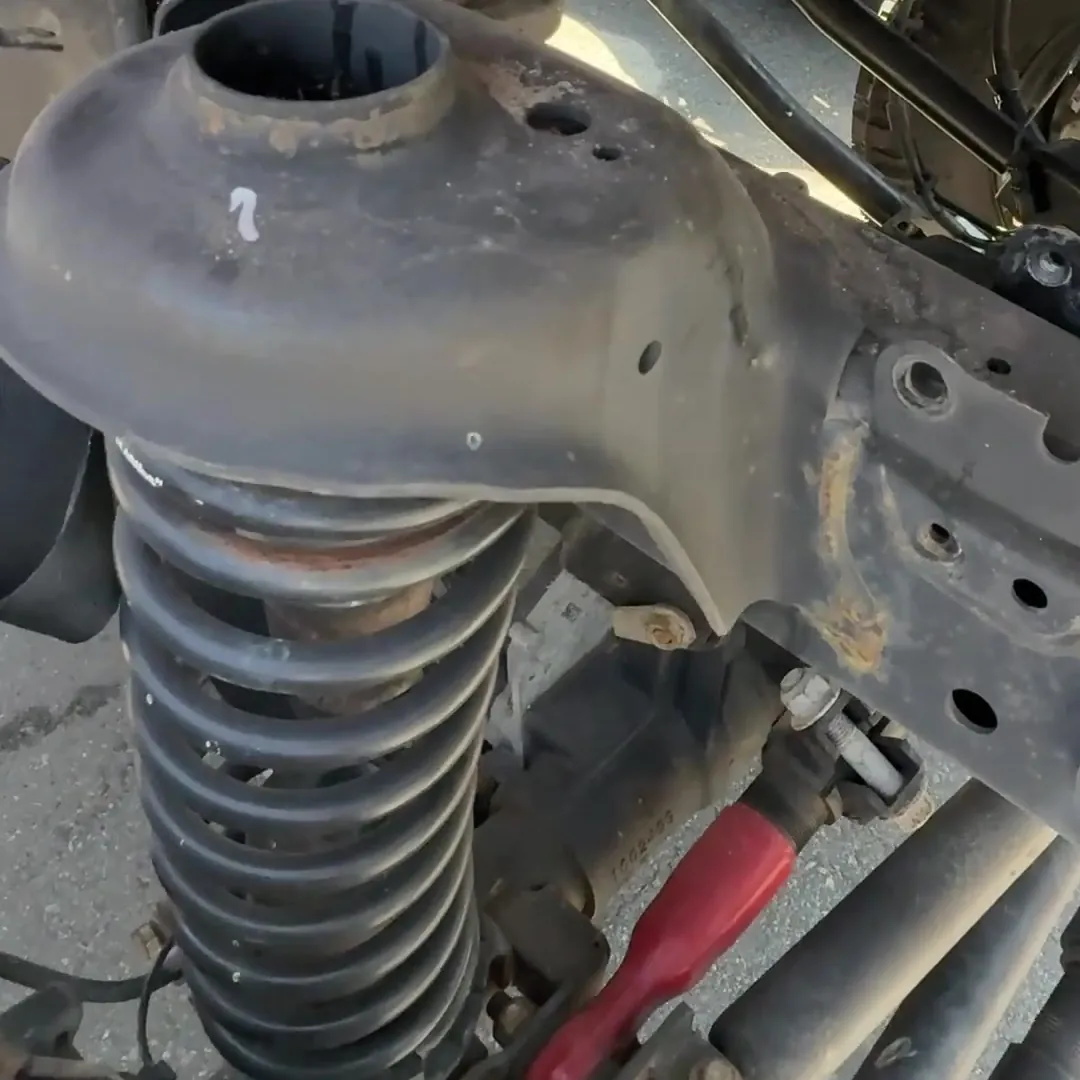

Fox shocks

Race-valved Fox suspension for high-speed whoops and big hits.

Method wheels

Race wheels chosen for strength and serviceability.

Protected steering

The hydraulic steering ram is tucked behind the tie rod, out of the line of fire from rocks.

Desert cooling

Cooling sized for long, hot, slow sections, not just a quick sprint.

Clean air

Multi-stage air filtration built to survive hundreds of miles of dust without service.

The Goal
500+

off-road miles. No stops.

Our goal is to run 500+ off-road miles without stopping. It's a target we're building toward, and every test and race gets us closer.

2027 Season

Where to find MOAB

Schedule subject to change. Final dates and classes come from each sanctioning body.

Build Journal

Progress log

  1. Concept & layout

    Series-hybrid architecture chosen and packaged into the JL platform.

  2. Axles & suspension

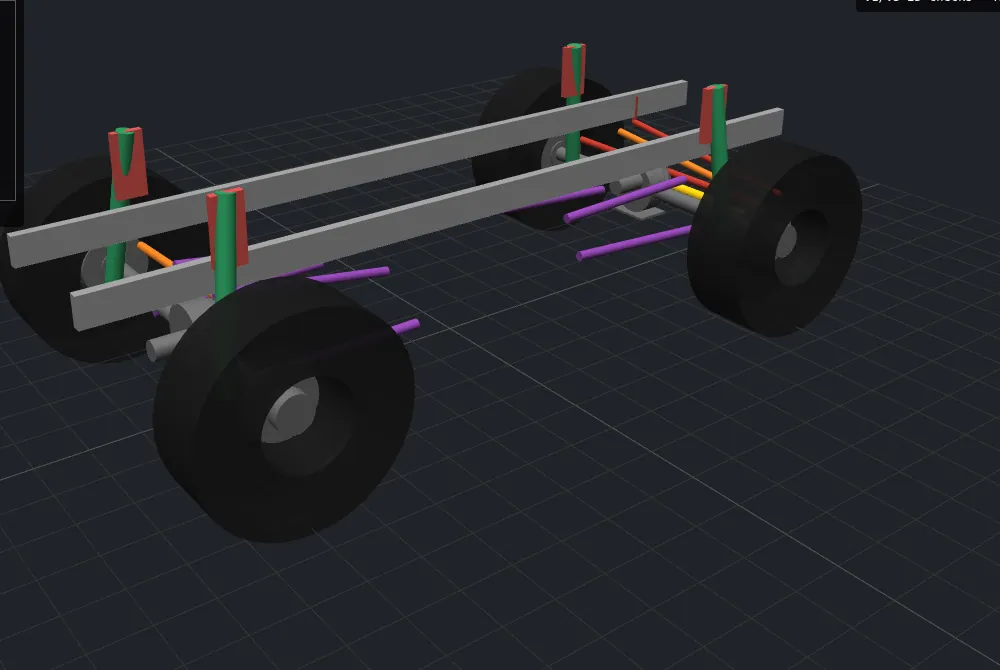

    Currie axles and Fox suspension laid out in CAD, then checked through full travel.

  3. Steering redesign

    Steering ram moved behind the tie rod for protection. Mock-up fitment is next.

  4. Livery

    Navy and lime DXR livery in development.

  5. Up next

    Fabrication, hybrid system install and desert shakedown testing.

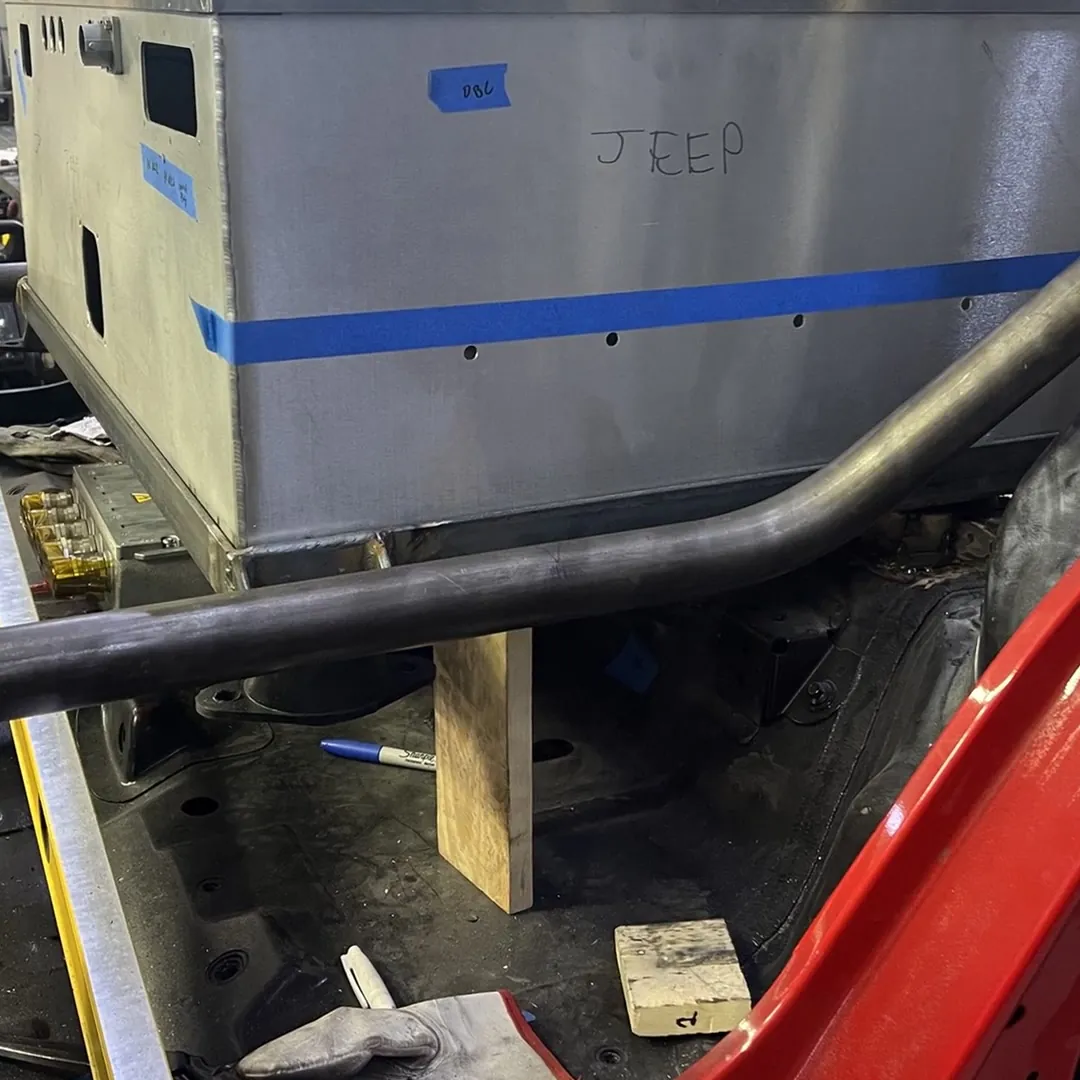

MOAB build progress: hybrid system packaging on the Jeep JL
Hybrid system packaging on the JL
Get Involved

Sponsor or follow MOAB

Put your brand on a hybrid race truck chasing a 500-mile no-stop goal, or just ride along with every build update and race.

Become a SponsorFollow the Build
